GeForce RTX™ 5070 12G VENTUS 2X OC
Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card
Core Clock:
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications:
Marketing Name    GeForce RTX™ 5070 12G VENTUS 2X OC
Model Name    G5070-12V2C
Graphics Processing Unit    NVIDIA® GeForce RTX™ 5070
Interface    PCI Express® Gen 5
Core Clocks    Extreme Performance: 2557 MHz (MSI Center) / Boost: 2542 MHz
CUDA® Cores    6144 Units
Memory Speed    28 Gbps
Memory    12GB GDDR7
Memory Bus    192-bit

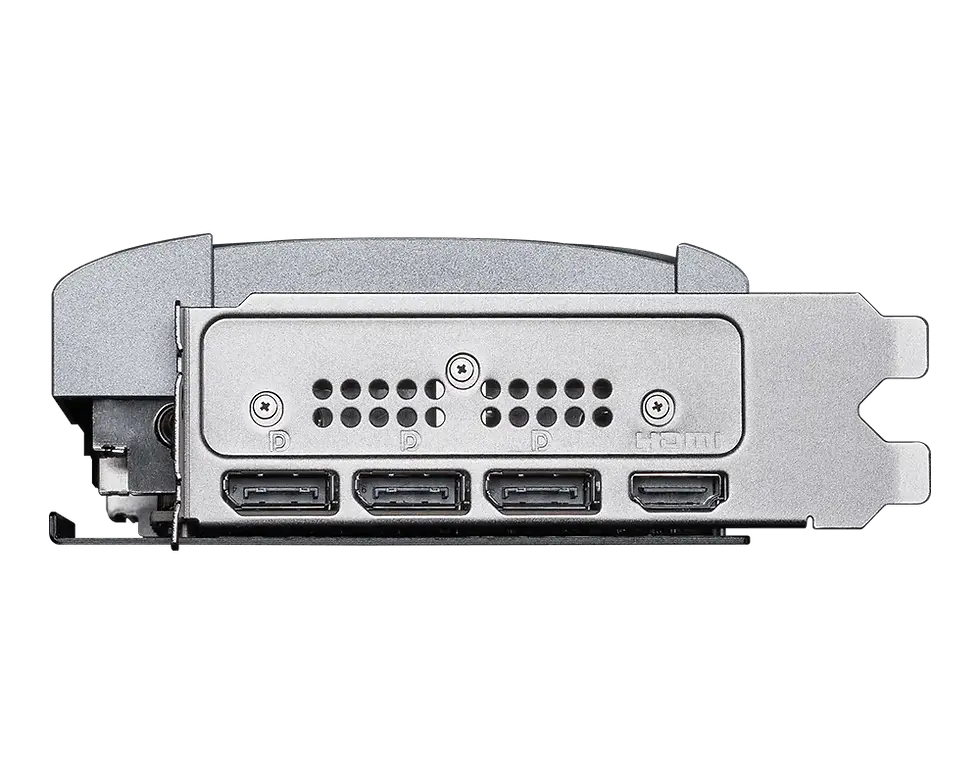

Output    DisplayPort x 3 (v2.1b) / HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support    Y
Power Consumption    250 W
Power Connectors    16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU    650 W
Card Dimension (mm)    236 x 126 x 50 mm
Weight (Card / Package)    774 g / 1149 g
DirectX Version Support    12 Ultimate
OpenGL Version Support    4.6
Maximum Displays    4
G-SYNC® Technology    Y
Digital Maximum Resolution    7680 x 4320
