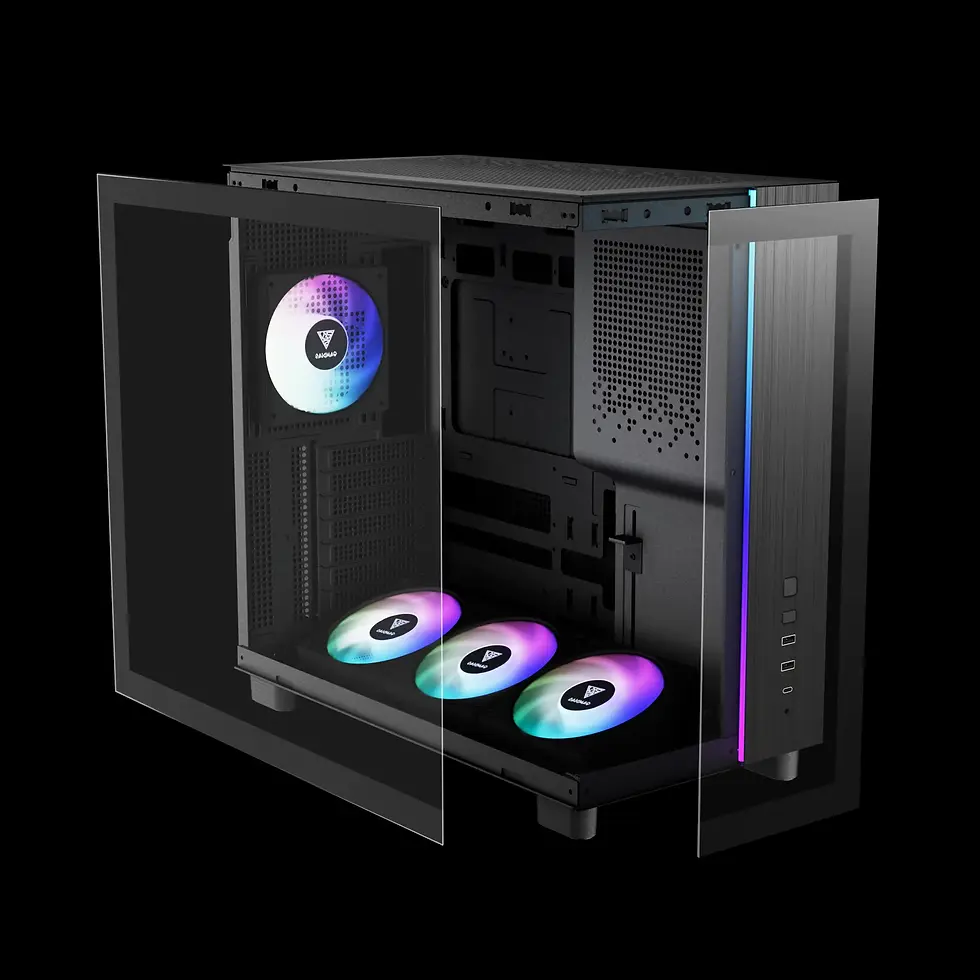

GAMDIAS ATLAS M4 Mid-Tower Cabinet
IMMERSIVE VISUALS, DYNAMIC AIRFLOW
The ATLAS M4 delivers a fully immersive showcase with seamless tempered glass panels from bottom to top. Its front-mounted PSU design not only opens a complete panoramic view of your build but also enables chimney-style ventilation for optimal thermal performance. With four built-in NOTUS M1 ARGB fans and an adjustable bottom cooling system, the ATLAS M4 combines striking visuals with powerful cooling efficiency.
FULL IMMERSIVE VIEW
Showcase your build from bottom to top with seamless tempered glass panels on the front and side. With the PSU positioned at the front, the ATLAS M4 delivers an unobstructed, panoramic view of your components, creating a truly immersive visual experience.
CHIMNEY-STYLE VENTILATION
The ATLAS M4 maximizes cooling efficiency with a natural chimney effect, drawing fresh air through the perforated bottom and exhausting heat through the top and rear. This design ensures consistent cooling performance with powerful, unobstructed airflow throughout the case.
4 ARGB PWM FANS WITH BUILT-IN FAN HUB
Featuring four built-in silent NOTUS M1 ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.
ADJUSTABLE ANGLED AIRFLOW
The ATLAS M4 features a bottom-mounted, adjustable fan system with six selectable angles, directing airflow precisely toward high-performance GPUs. This flexible design ensures optimal cooling efficiency, keeping your graphics card stable and reliable even under maximum gaming load.
EASY ACCESS FRONT-MOUNTED PSU DESIGN
The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.
DUST RESISTANTE
quipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.

• Seamless Tempered Glass Display
• 4 Built-in 120mm NOTUS M1 ARGB Fans
• Natural Chimney-Style Ventilation
• Front-Mounted PSU Design
• Adjustable Bottom Cooling System
• Modular Tool-free Installation
• Supports Connector-hidden Motherboards
• Fits Mini-ITX, Micro-ATX, and ATX motherboards
• Pre-Installed Anti-sag Bracket for GPU up to 425mm
• Gen 2 Type-C Port Ready
• Magnetic Dust Filter

SPECIFICATIONS:
Model: ATLAS M4
Case Type: MID Tower
MB Support: ATX、Micro-ATX、Mini-ITX
Synchronization: 5V 3-Pin Addressable Header
CASE Color: Black
Expansion Slots: 7
Material: SPCC & ABS & Tempered glass
Window: Front, Left
Radiator Support: Top: 360mm / Rear: 120mm
Fan Support: Top: 3 x 120mm
Rear: 1 x 120mm / 1 x 140mm
Bottom: 3 x 120mm
Pre-installed Fans: Rear: 1 x 120mm PWM ARGB Fan
Bottom: 3 x 120mm PWM ARGB Fans
Drive Bays1 x 3.5 + 1 x 2.5 or 2 x 2.5
I/O PortType-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1
Clearance: CPU cooler height limitation: 175mm
VGA length limitation: 425mm
PSU length limitation: 160mm
Dimension (L x W x H): 430 x 235 x 434mmPre-installed Control BOX: 8 Ports Hub (4 port are used)
Note: Some PSUs may have compatibility issues depending on the AC inlet orientation; we recommend using a GAMDIAS PSU.
